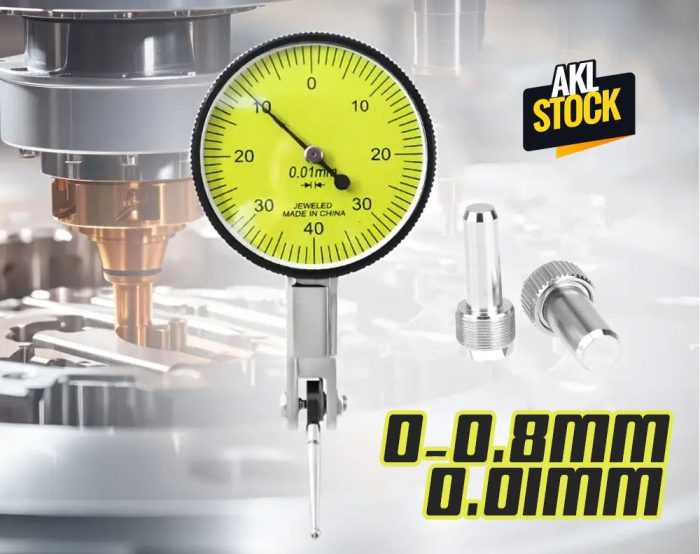

0-0.8Mm Dial Test Indicator

0-0.8mm 0.01mm Level Gauge Scale Precision Metric Dovetail Rails Dial Test Indicator Dial Gauge Measuring Instrument

Universal arm, 360 degree rotation, can be fixed at any angle, easy to use quickly. Switch magnetic base, you can move at any time, no reaction, to avoid damage to the table and work surface.

The base is equipped with alloy permanent magnet, with anti-loose spring center locking mechanism, loading table end with a dovetail slot.

The head can be rotated with a fine-tuning device, in addition to holding the ordinary dial indicator, lever table, but also hold the lever percentage with dovetail slot.

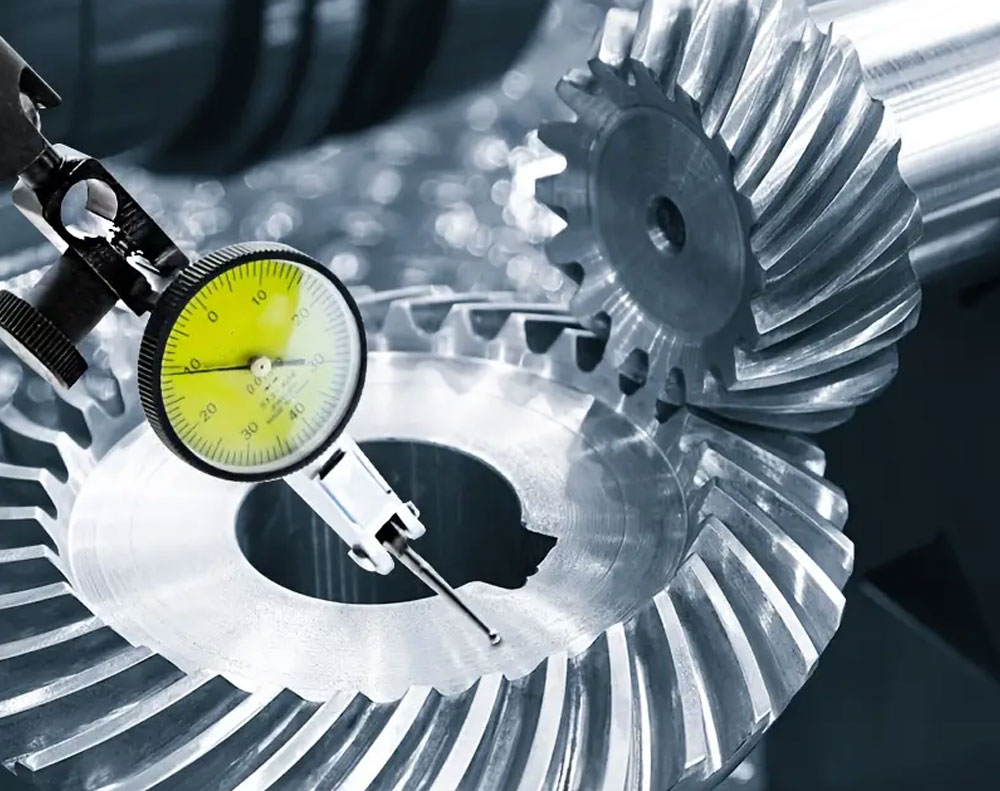

Smooth paint chrome universal arm, can be fixed at any angle, easy to use quickly, widely used for mechanical parts correction and technical measurement.

The workpiece axis is parallel to the work surface of the table in order to find and scribe the tool. Simple structure, easy to use and maintenance, high sensitivity, accurate and reliable.

**Features:
¯¯¯¯¯¯¯¯**

* Universal arm with 360-degree rotation
* Switch magnetic base for easy movement
* Alloy permanent magnet base with anti-loose spring center locking mechanism
* Fine-tuning device for rotation of the head
* Smooth paint chrome universal arm
* Used for mechanical parts correction and technical measurement
* Simple structure, high sensitivity, accurate and reliable

**Specifications:
¯¯¯¯¯¯¯¯¯¯¯¯¯**

* Dial Indicator 0-0.8Mm
* Warranty Period: 100 DAYS
* Material: Metal
* Dial type: 0-40-0 balanced inch and 0-.25-0 balanced metric readings

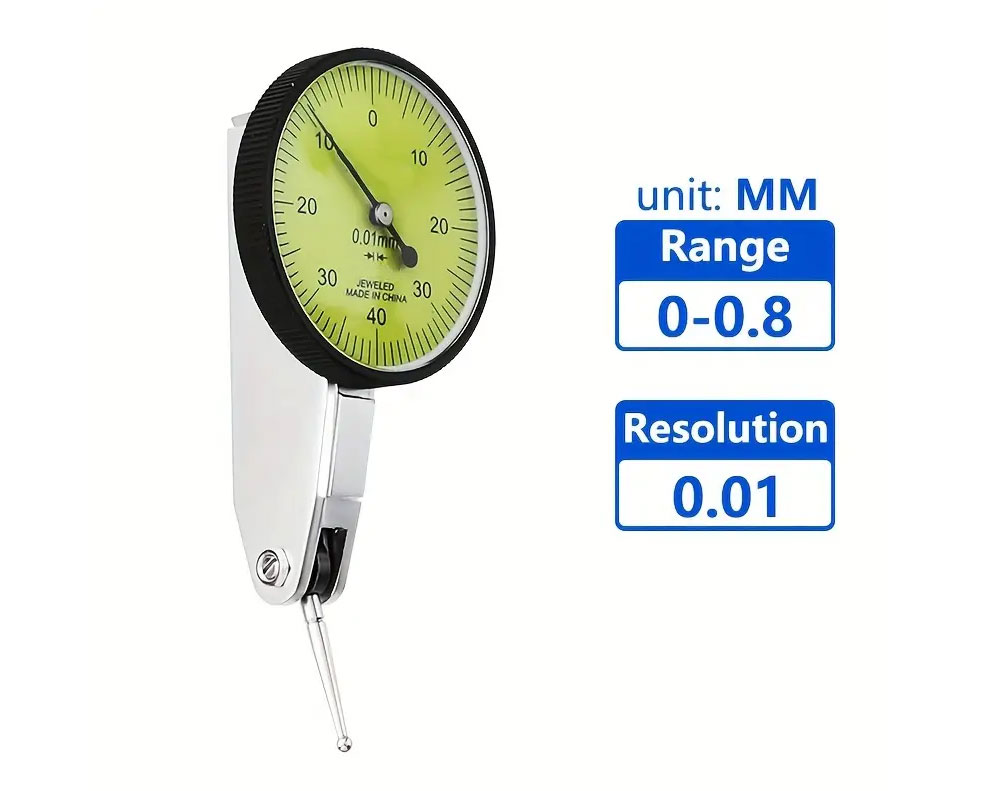

* Range: 0-0.8mm
* Graduations: 0.0005"/0.01mm
* Contact point length: 1/2"
* Dovetail clamps: 3/8" and 5/32"
* Mounting type: Dovetail Flexible Magnetic Base Holder Stand
* Clamping Hole Diameter: approx. 8mm
* One magnetic base with On/Off switch
* Designed with three joints
* Suitable for dial indicator and lever dial indicator

**Package Contents:
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯**

1 * Dial test indicator

***
**Note:
¯¯¯¯**

* Ask About Combine Shipping of different items
* Auckland Stock
